Power Switch
Step 1: Add the Switch
Parts Needed:
REV-41-1303 – Bracket, Motion (4)
REV-41-1361 – Nut, Locking, M3 (8)
REV-41-1359 – Screw, Hex Cap, M3, 8mm (8)

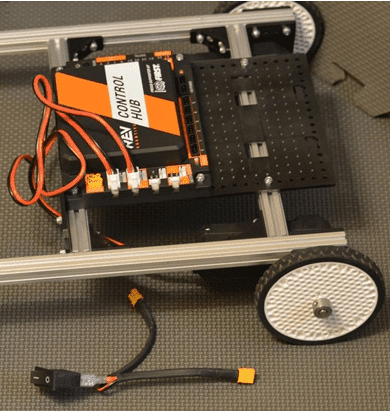

Figure 45- Unconnected view

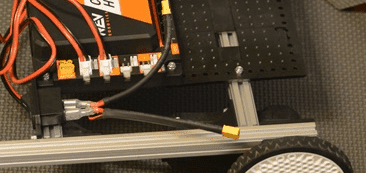

Figure 46- Connected view
Step 2: Connect the Switch to the Control Hub

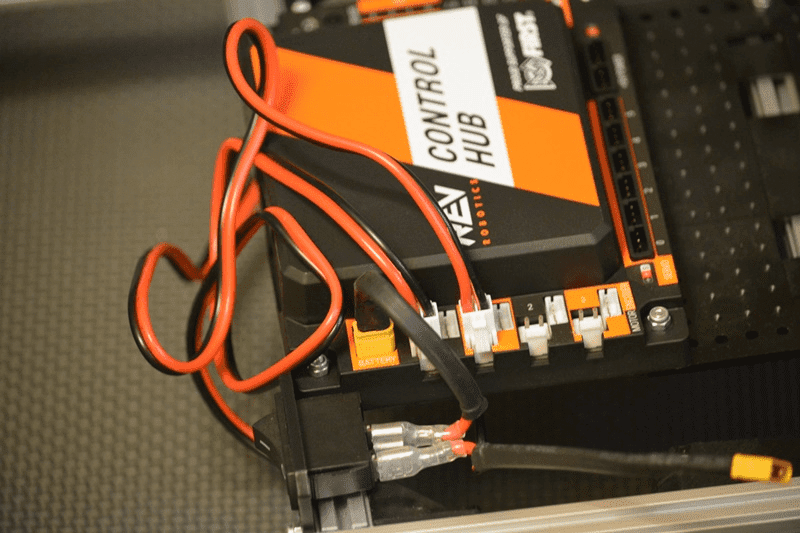

Figure 47- Unconnected view

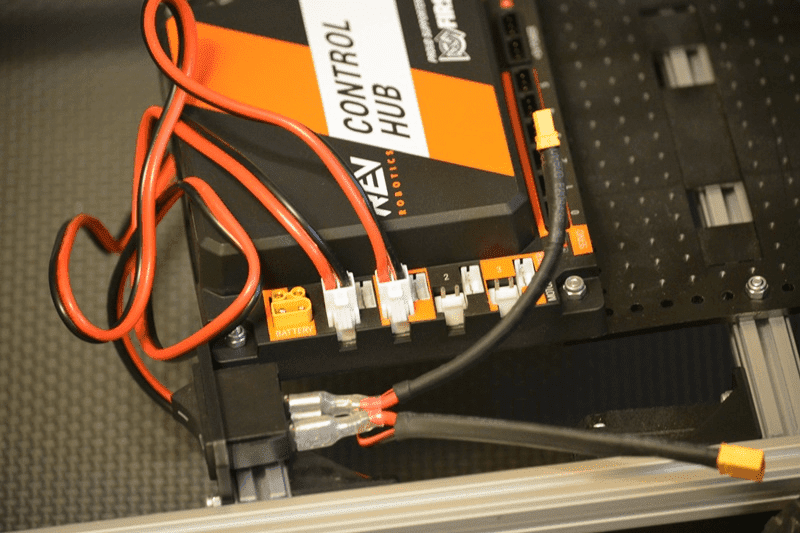

Figure 48- Connected view
