Battery
Step 1: Add the Battery
Parts Needed:
REV-31-1302 – Slim Battery, 3000mAh (1)
REV-41-1161 – Zip Tie, 160mm (2)

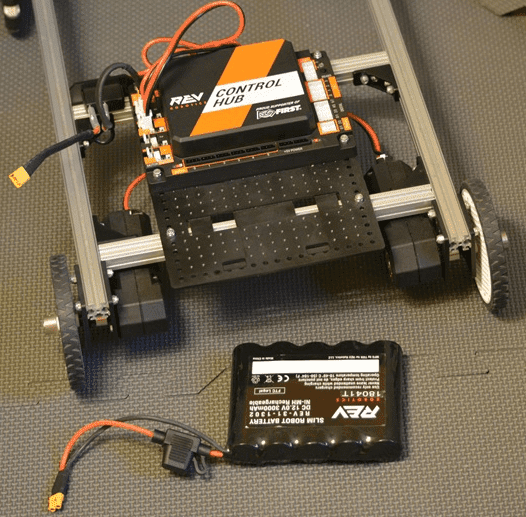

Figure 49- Unassembled view

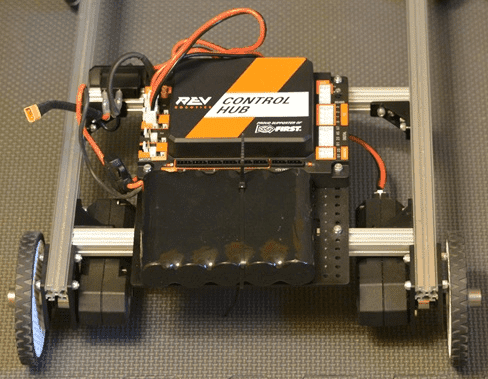

Figure 50- Assembled view
Step 2: Connect the Battery to the Switch

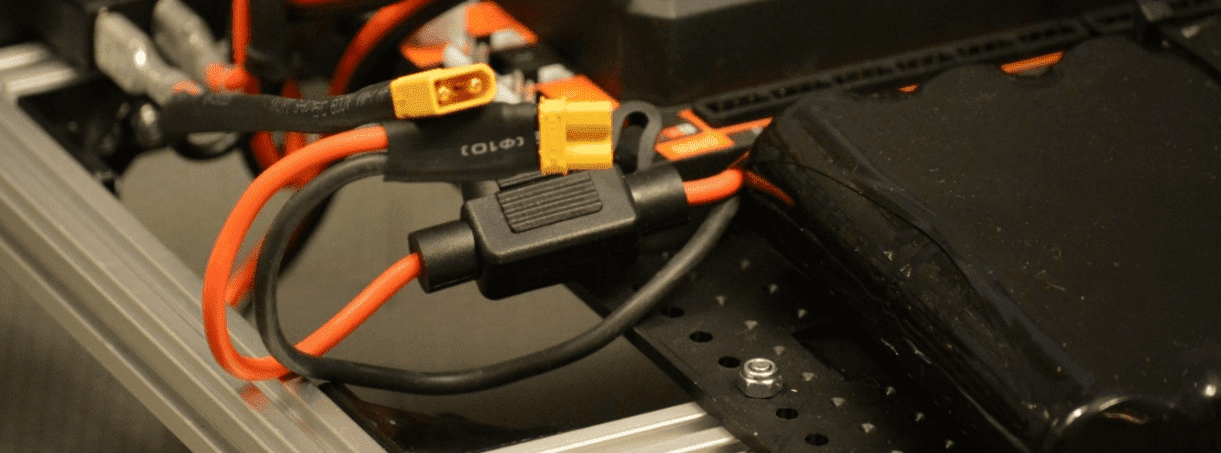

Figure 51- Unconnected view

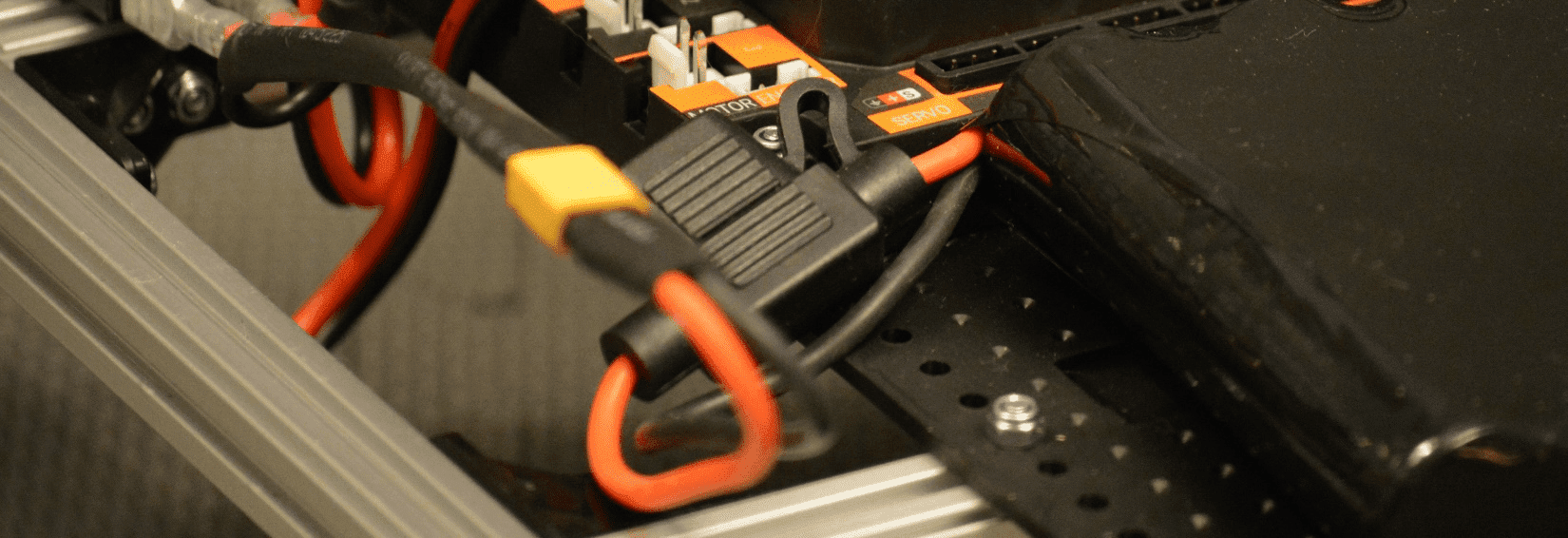

Figure 52- Connected view
